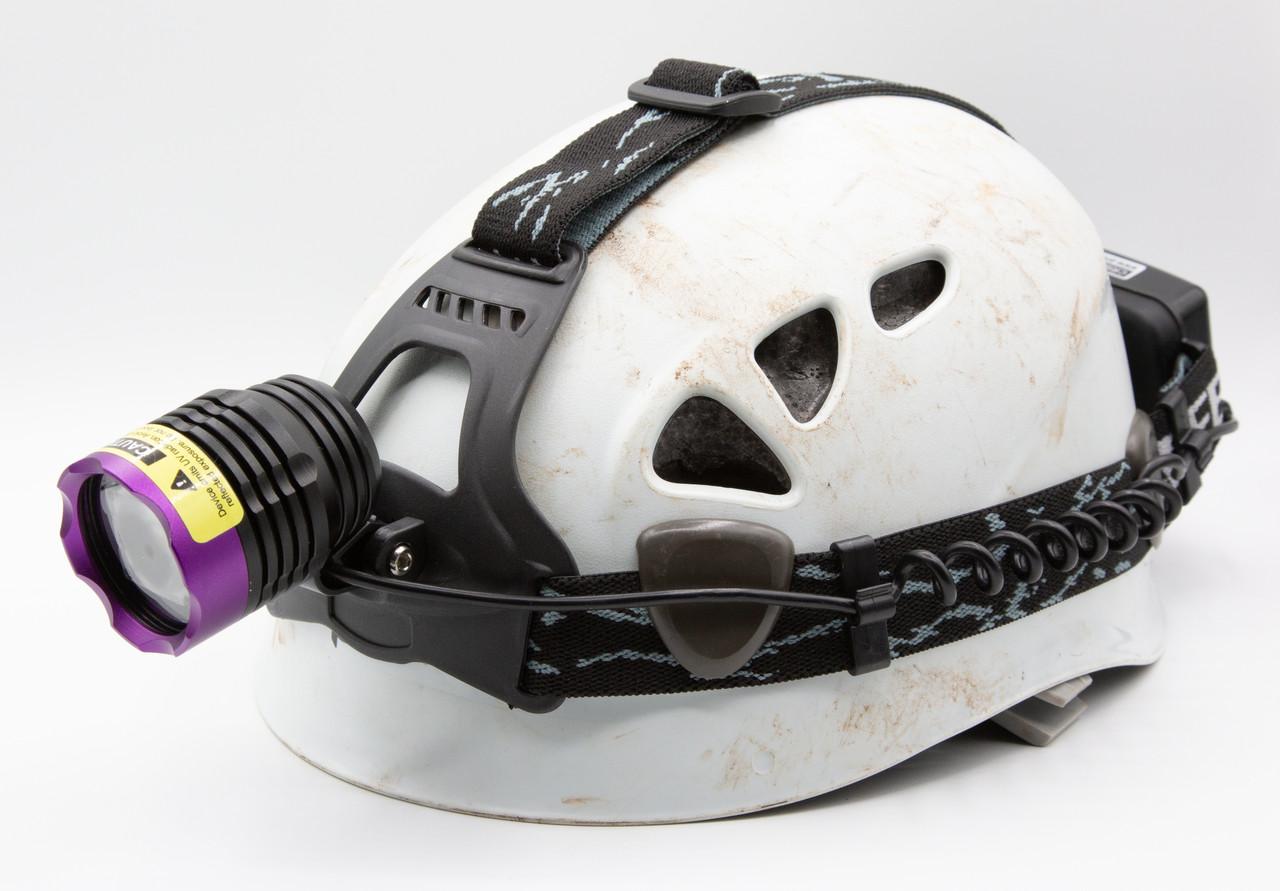

NeoVU-HM2
365nm UV LED Head Mounted Inspection Lamp
Hands Free UV-A Headlight
The NeoVU-HM2 is a compact head light which features an adjustable strap, that can be worn on the head directly or over a safety cap. The NeoVU-HM2 is hands free making it ideal for when using yokes in MPI processes and many applications where having both hands free is desirable including NDT, document verification and crime scene forensics.
Using the same highest quality Nichia emitter and UV-A transmitting Silicone Ledil lens as our NDT flashlights the NeoVU-HM2 produces a high intensity circular uniform beam profile.
Rechargeable Battery Pack
Mounted on the rear of the strap at the back of the head is the battery pack which holds 2 x 18650 rechargeable Li-Ion battery cells supplied as standard. The battery pack can be recharged without the need to remove the individual battery cells. An external charger is included as well for greater versatility and fast charging.
On a full charge the NeoVU-HM2 will provide 6 hours of useful ON time before needing to be recharged.
Technical Specification / Spectral Information
| Light Source | Nichia UV LED |
| Peak Wavelength | 365 ± 5 nm |
| Intensity (@ 380mm) | > 4000 μW/cm² |
| Visible Light | < 5 lux |
| Coverage Area / Beam Profile (@ 380mm) | 150mm |
| UV-B | 0 μW/cm² |
| UV-C | 0 μW/cm² |
| Battery Data | 2 x Li-ion Battery, 3.7V |
| Working Period (Full Charge) | > 6 Hours |
| Charging Period (Quick Charger) | 2 Hours |
| Charging Period (Mini Charger) | 6 to 8 Hours |
| Weight (Headlight) | 260g |
| Wavelength Drift (@ Elevated Temp.) | ≤ 5 nm |
| Full Width @ Half Maximum (FWHM) | ≤ 15 nm |
| Longest Wavelength @ Half Maximum (LWHM) | ≤ 377 nm |
| ± Width @ Half Maximum | ≤ ± 8 nm |
| Full Width @ 10% Maximum (FW10%) | ≤ ± 25 nm |
| ± Width @ 10% Max. | ≤ ± 12 nm |
| Operational Temperature Range | 5 to 50 °C |
| Input Supply (Power Adaptor) |
100-240V, AC |
| Warranty | 12 Months |
| Quality Marks | UKCA, CE, RoHS |
