MC460
460mm Aperture Demagnetiser
MPI Component Demagnetiser
The MC460 can be used as both a magnetising and demagnetising coil and is capable of finding circumferential orientated defects. With a sturdy PVC construction and with the coils fully sealed this unit is suitable for use in even the harshest engineering environments.
The MC460 is fitted with a self-resetting thermal cut-out to prevent burnouts from misuse and the AC only model is supplied with an energising Foot Pedal for ease of use.
Versions Available:
- MC460/1 - AC Only
- MC260/2 - AC/DC Model
AC/DC Model

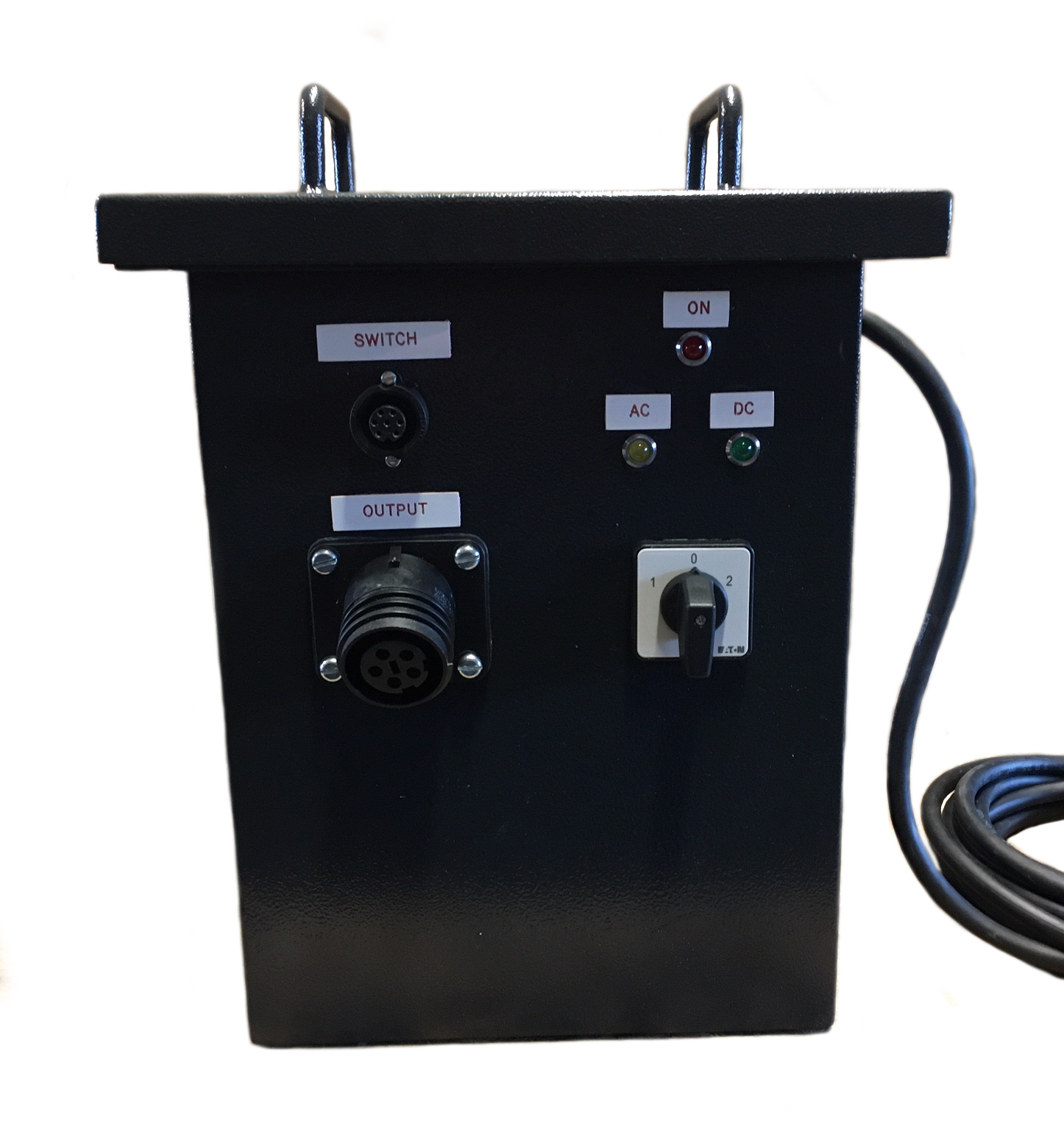

The MC460 AC/DC demagnetizer is similar to the standard AC MC560 but is supplied with a sealed control box which features a mode selection dial to allow operators to select either AC or DC modes of operation.
The AC/DC version can be supplied with either a Foot Pedal or a Hand Control for energizing. The hand control also displays the currently selected mode.
The AC mode is effective at demagnetization / degaussing – However the DC waveforms produced by the MC460 (AC/DC) do not change polarity, so this mode is not suitable for demagnetizing parts. Therefore the DC mode should only be used when wanting to magnetize a part.
---Copy1.jpg)
Product Data
| Version | AC Only | AC/DC |
| Input Supply (Unloaded) |
230VAC @ 18.5A | 230VAC @ 18.5A |
| Voltage Regulation | ±10% of nominal | ±10% of nominal |
| Frequency | 50 / 60 Hz | 50 / 60 Hz |
| Waveform | AC | AC / DC |
| Aperture Diameter | 460mm (18 Inches) | 460mm (18 Inches) |
| Energize Switch Position | Foot Pedal | Foot Pedal / Hand Control |
| Mode Selection | N/A | Selector Dial on Control Box |
| Duty Cycle | 25% - Max. ON time 30 seconds | 25% - Max. ON time 30 seconds |
| Magnetic Field (@ Center) |
110 Gauss |
110 Gauss (8.8 KA/m) |
| Coil Dimensions (LWH) | 600 x 130 x 680mm | 600 x 130 x 680mm |
| Coil Weight | 34 Kg | 34 Kg |
| Control Box Dimensions (LWH) |
N/A | 300 x 300 x 360mm |
| Control Box Weight | N/A | 23 Kg |
| Ingress Protection | IP54 | IP54 |
| Mains Lead | 4 Meters | 4 Meters |
| Foot Pedal / Hand Control Lead | 2 Meters | 2 Meters |
| Plug Type | ‘C’ Form - 32A | ‘C’ Form - 32A |
| Warranty | 12 Months | 12 Months |
